Paxton Net2 Plus 1 Door Controller PoE+ in Plastic Cabinet – 682‑284, Networked Access Control for UK Installers & Commercial Sites, RS485, RJ45 TCP/IP, Flash Upgradeable, Secure Entry Solution

This is a complete, network-ready access control solution featuring the Paxton Net2 Plus controller housed in a durable plastic cabinet. Designed for secure, scalable installations, it integrates effortlessly into existing LAN networks for centralized management and flexible deployment.

Key Features:

• Controls a single door with support for multiple user credentials

• Connects to your network via RJ45 plug (standard TCP/IP Ethernet)

• Built-in TCP/IP converter—no need for separate interface hardware

• Compatible with both Paxton and third-party access readers

• FLASH memory enables easy firmware updates

• Supports mixed setups with Net2 Plus and Net2 Classic units

• Includes RS485 connectivity for daisy-chaining additional control units

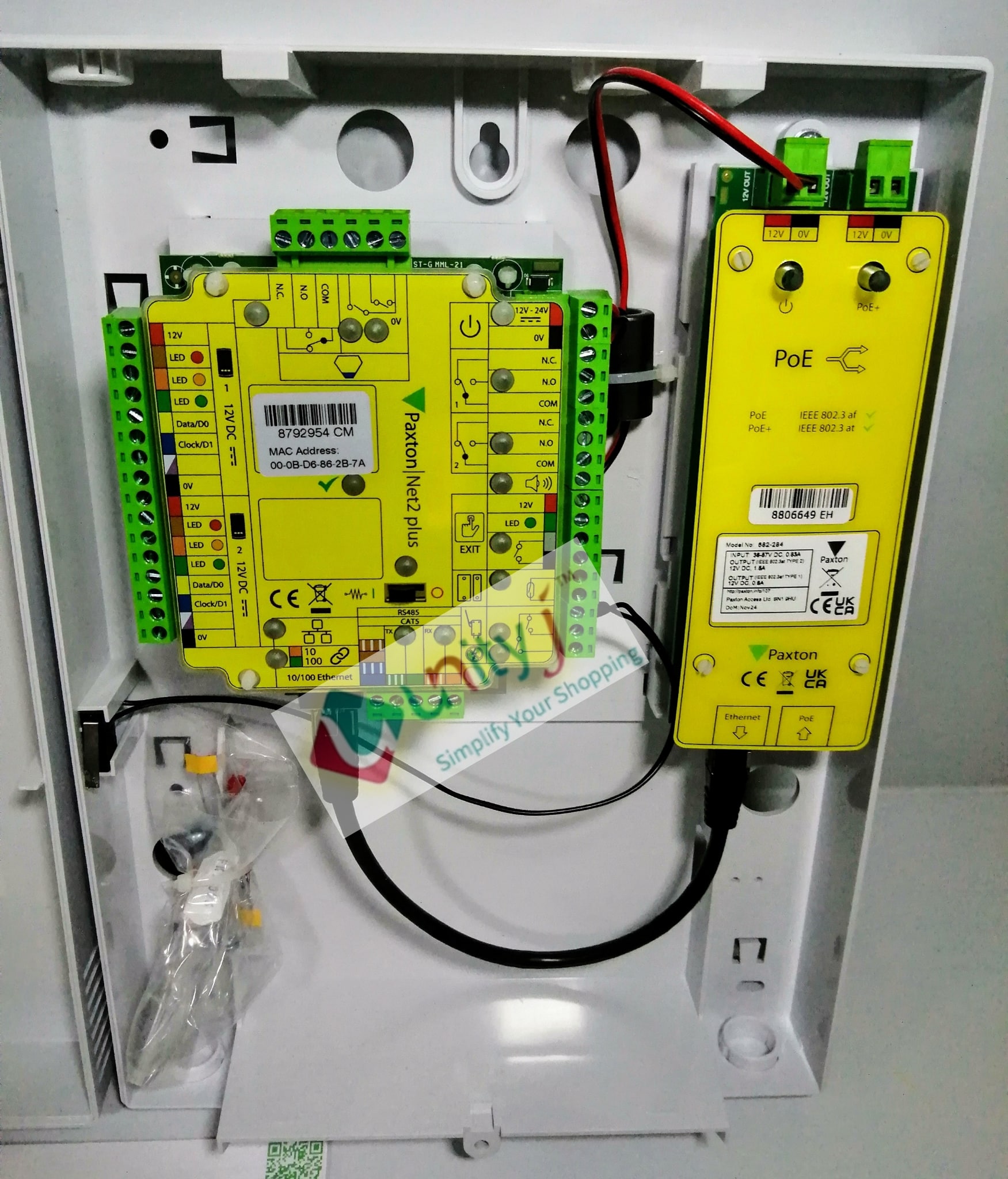

Enclosure Details:

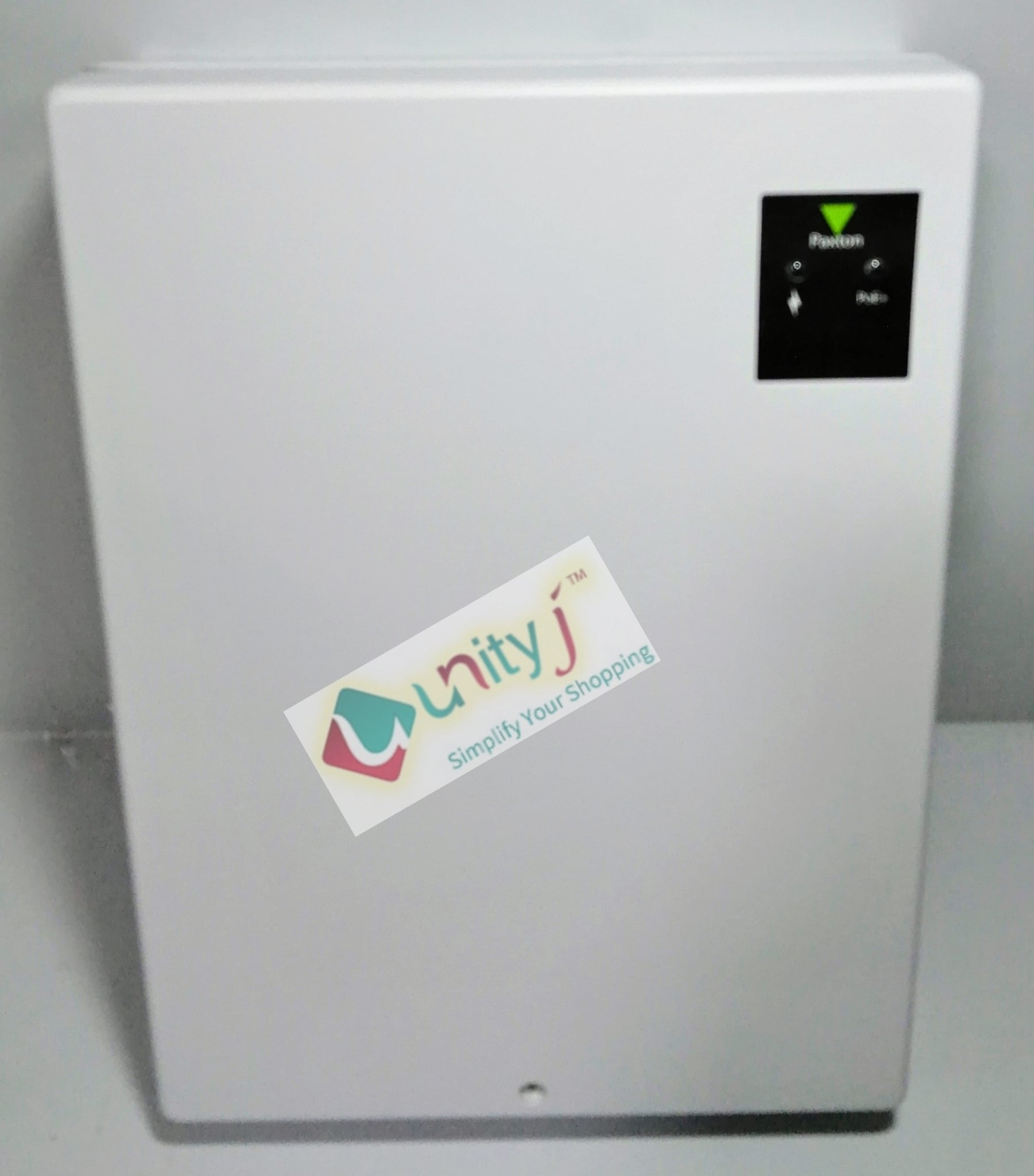

• Supplied in a robust plastic cabinet for clean, secure installation

• Cabinet includes integrated cable management and mounting options

• Note: Plastic cabinet versions do not include power supplies

Efficient Installation:

• Color-coded terminal labels for streamlined wiring

• Built-in voltage-free relay for lock and device switching

• Supports exit buttons, door contacts, tamper alarms, and more

• Diagnostic LEDs for each terminal aid in setup and troubleshooting

• Onboard terminating resistors—no external components needed

System Integration:

• Requires fixed/static IP address for operation

• Local memory ensures reliable performance even if network goes down

• Real-time access decisions and logging

• Configuration managed via Paxton’s Net2 Configuration Utility

Ideal for business and institutional use, this unit provides professional-grade access control in a ready-to-mount plastic enclosure. Suitable for both new installs and system expansions.
